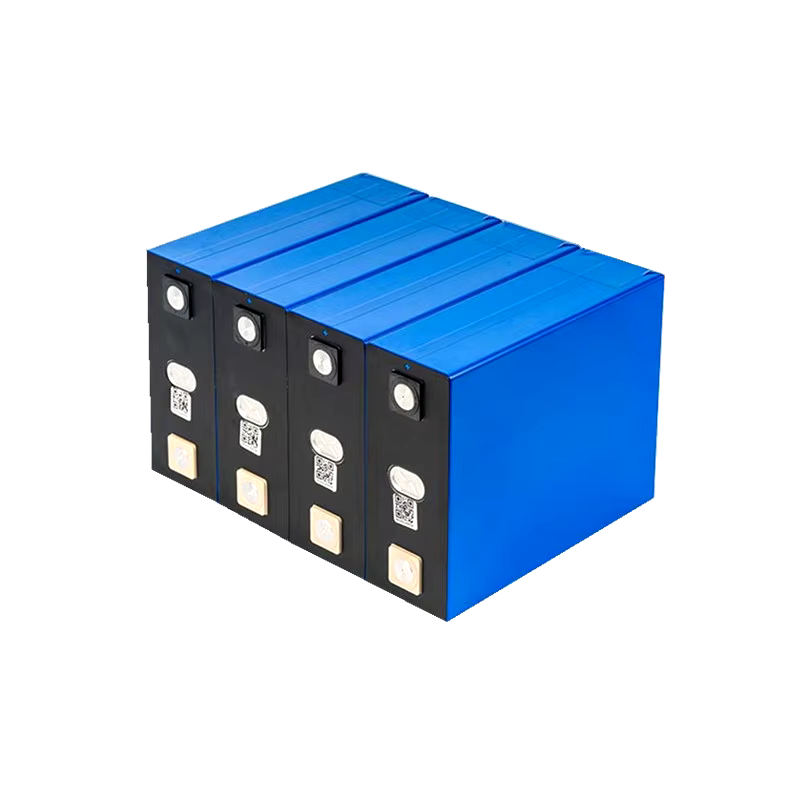

6000 Cycles Hithium 280AH 314Ah LiFePO4 Cell 3.2v Prismatic Solar lithium ion batteries 280Ah LiFePO4 Energy Storage Battery


LiFePO4 batteries are known for their improved safety compared to other lithium-ion batteries. They are more stable at high temperatures and are less prone to thermal runaway, making them less likely to catch fire or explode.This makes them suitable for use in both hot and cold environments. LiFePO4 batteries have a longer cycle life compared to other lithium-ion batteries. They can typically withstand thousands of charge/discharge cycles, making them ideal for applications that require frequent cycling.
Description
6000 Cycles Hithium 280AH 314Ah LiFePO4 Cell 3.2v Prismatic Solar lithium ion batteries 280Ah LiFePO4 Energy Storage Battery
Welcome to CTS

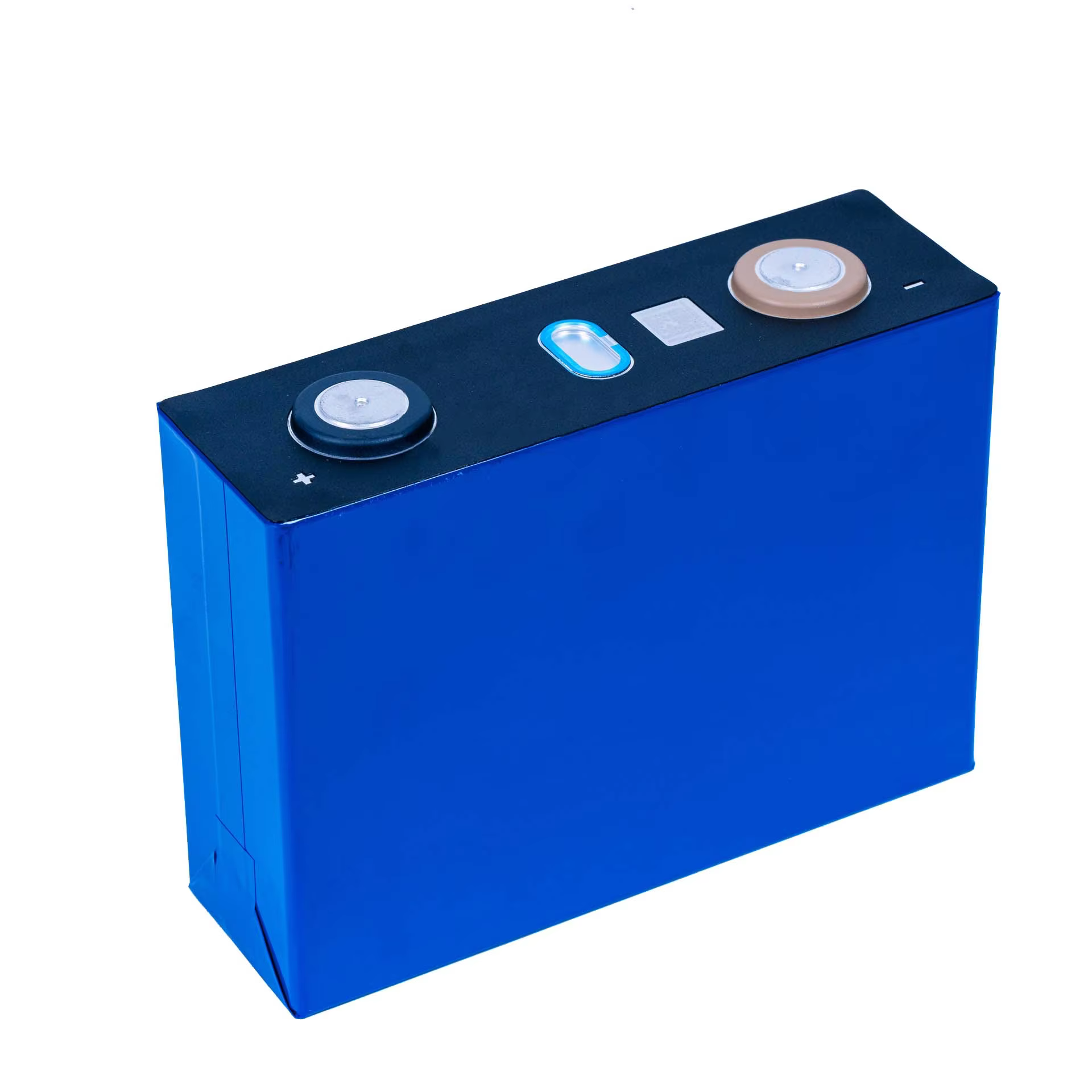

3.2v lifepo4 prismatic battery cell
CTS is a professional manufacturer engaging in research, development, production, marketing and service of lithium ion pouch battery cell, battery pack and battery management system.

With 20+ people R&D team who has rich experience, CTS focuses on power battery customization for middle and high end markets. We always followed Strict quality control ensures the higher quality of products. With the concept of "customers the first, quality the life", we strictly follow ISO9001 & IATF16949 management system through the production of every detail, each battery must be strictly tested before delivery. CTS batteries selling well in China, also exported to many countries, such as, America,Australia, Canada, Italy, UK, Germany, South Korea, Thailand etc.
Specification

Features:

1.Grade A New battery cell with real capacity.
2.Light weight, small size and high performance.
3.Small internal resistance.
4.Outstanding Discharge performance. .
5. long life >6000 cycles.
6.Existing stock for short delivery time.

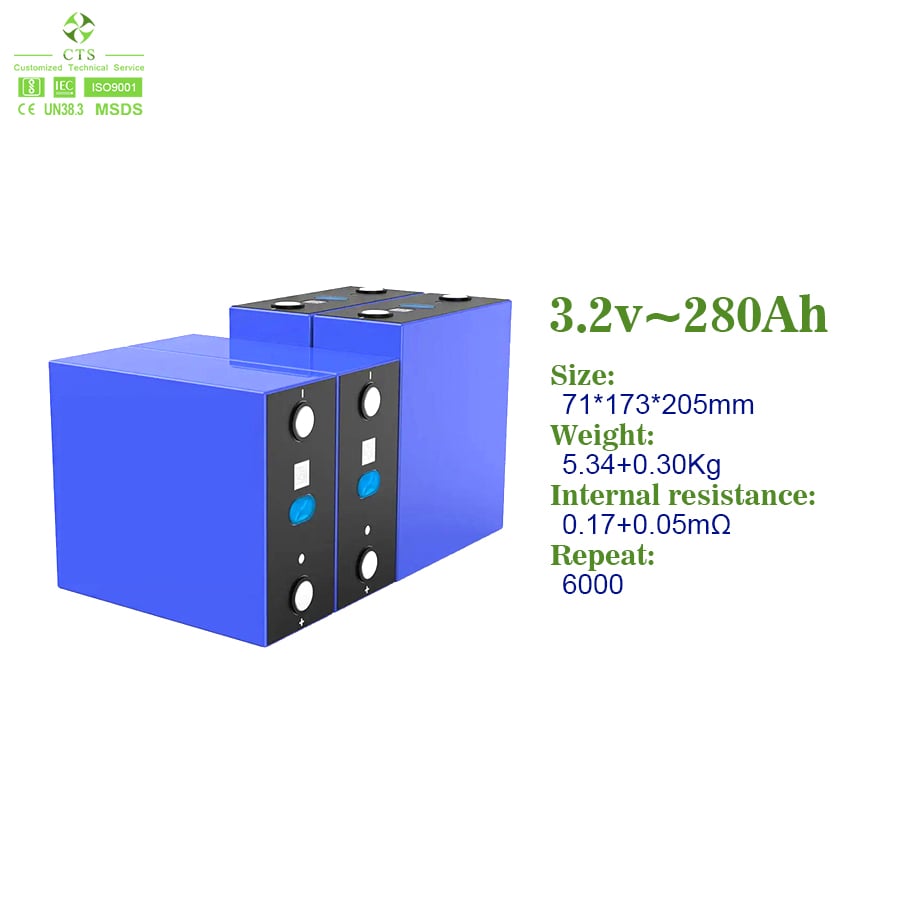

Datesheet of 3.2V 100Ah/280Ah/310Ah battery cells:
Item
Specification
Cell model
F50160116
F72174204
F72174204
Minimum Capacity
100Ah
280Ah
310Ah
Nominal Voltage
3.2V
3.2V
3.2V
Operating Voltage Range
2.50~3.65V
2.50~3.65V
2.50~3.65V
Charging Voltage
3.65V
3.65V
3.65V
Standard Charging Method
CCCV and CC is 0.5C
CCCV and CC is 0.5C
CCCV and CC is 0.5C
Max.Charge Current
1C/40min
1C/40min
1C/40min
Standard Discharging Method
1C/1h
1C/1h
1C/1h
Max.Discharge Current
2C/120s
 3C/30s
2C/120s
3C/30s
2C/120s
3C/30s
Initial Inner Resistance(1KHz)
0.28±0.05mΩ
     0.28±0.05mΩ
0.28±0.05mΩ
Cell Weight
1.985Kg±15g
5.31Kg±15g
5.5Kg±15g
Self-discharge
≤3% per month
≤3% per month
≤3% per month
Cycle life
>6000 cycles
>6000 cycles
>6000 cycles
Operating Temperature
0℃~60℃
0℃~60℃
0℃~60℃
-20℃~60℃
-20℃~60℃
-20℃~60℃

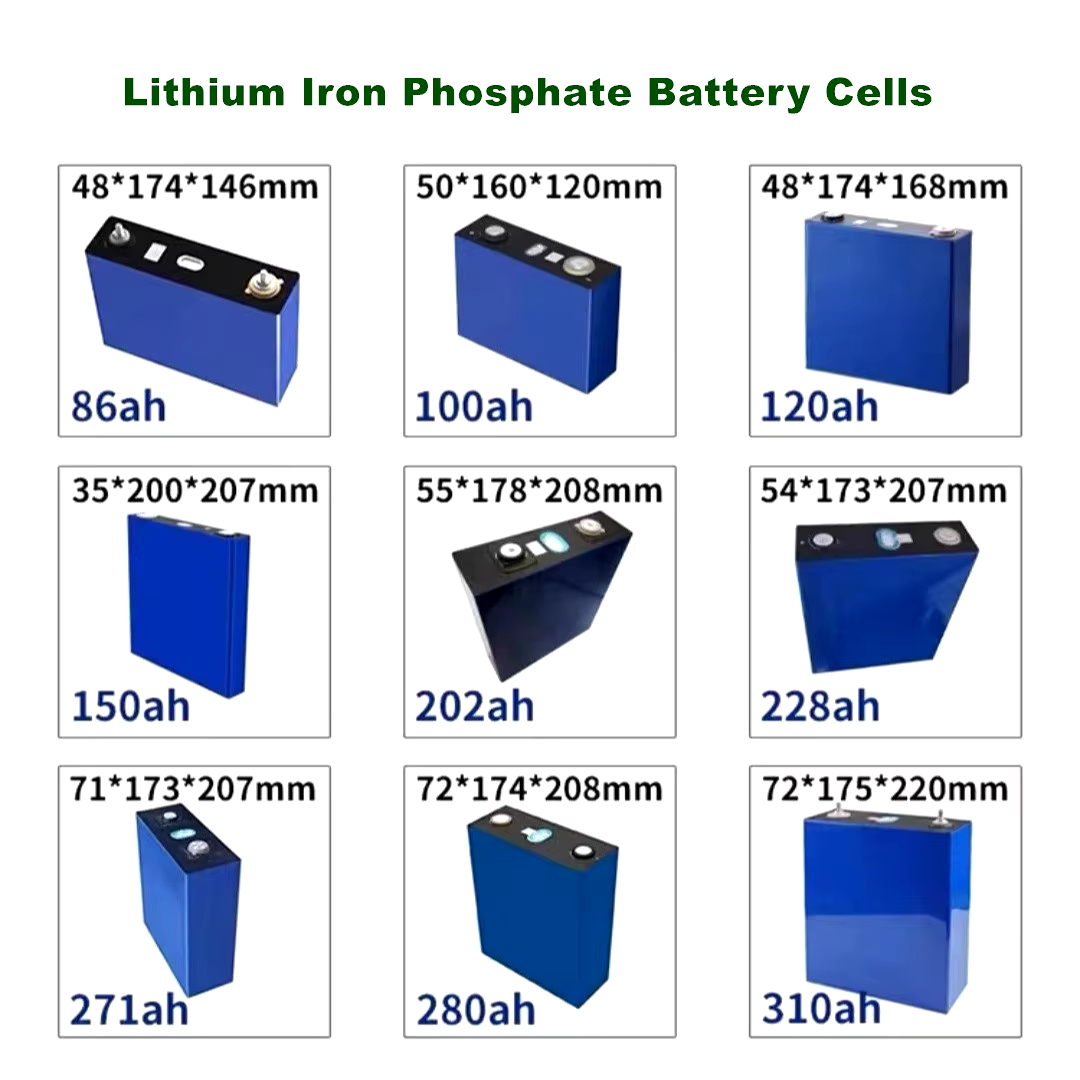

More models available
Voltage
Capacity
Size
Weight(g)
Discharge rate
Contious/Max











3.2V
Lifepo4
Prismatic
Battery
Cells
25AH
27*70*180
650
1C/2C
50AH
36*130*165
1370
2C/8C
50AH
36*130*170
1500
1C/3C
60AH
36*130*190
1700
1C/3C
100AH
36*130*215
2070
1C/1C
100AH
27*135*250
2000
1C/1C
40AH
27*148*134
1050
6C/6C
40AH
20*150*145
855
1C/1C
50AH
27*148*134
1110
1.5C/4C
50AH
20*150*145
980
1C/1C
50AH
36*130*130
1370
1C/1C
50AH
26*148*134
1370
1C/1C
50AH
30*136*185
1400
3C/3C
86AH
48*174*128
1980
1C/3C
100AH
40*220*111
2000
1.5C/2C
100AH
50*161*118
2000
1C/1C
100AH
47*173*132
2214
1C/1C
105AH
27*175*207
2000
2C/2C
150AH
60*220*111
2980
1.5C/2C
150AH
47*173*170
3300
1C/1C
150AH
54*173*145
2816
1C/1C
206AH
54*174*207
4180
1C/1C
230AH
54*174*207
4180
1C/1C
280AH
72*174*207
5100
0.5C/1C
304AH
72*174*207
5500
0.5C/0.5C

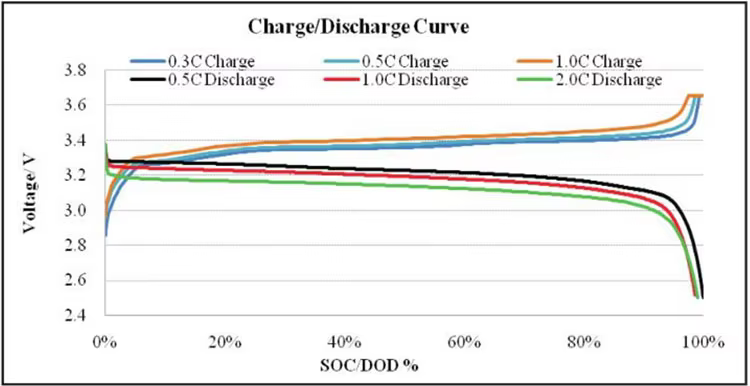

Correlation graph:
Application
A WIDE RANGE OF APPLICATIONS Powerful compatibility, widely used Electric vehicles , Energy storgae system, Back-up power, Golf cart,golf cart, fork lift....

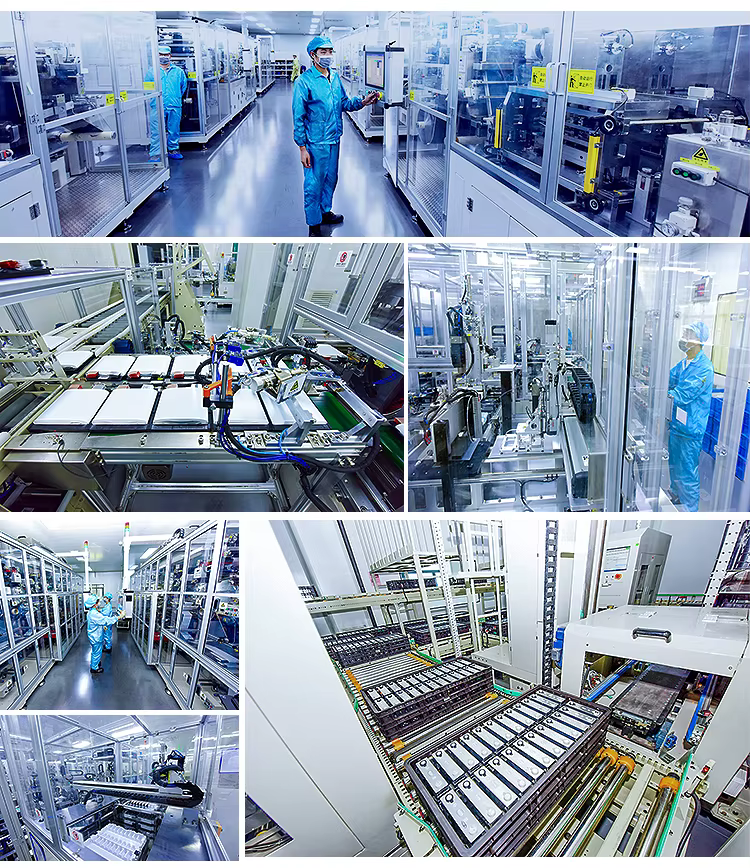

Company Profile
10+design and production experience
◆ 30+R&D team
◆ 150 employees ◆20000 square meter factory building
◆ Focusing on high volt power systems
◆ Certified by ISO9001 and IATF16949 systems
◆ Certified by R100, IEC62619,CE, BIS, MSDS, UN38.3
