Electric car battery factory 300V 400V 600V lithium ion battery pack 40kwh 55kwh lifepo4 batteries for electric vehicles
CTS offers lithium - ion battery packs for electric vehicles. The packs come in 300V - 600V options with capacities ranging from 40kwh to 55kwh, including lifepo4 batteries. These batteries are engineered to meet the power requirements of electric vehicles, ensuring reliable performance and long - lasting energy supply. With advanced technology and strict quality control, they enhance the efficiency and range of electric vehicles.
Description
Electric car battery factory 300V 400V 600V lithium ion battery pack 40kwh 55kwh lifepo4 batteries for electric vehicles
Hunan CTS Technology Co.,ltd
CTS can provides customized technical services for lithium batteries with 12 years of research and development experience. our battery packs are widely utilized in electric vehicles, electric buses, electric boats, engineering equipments and energy storage systems.
CTS factory has obtained the IATF16949 and ISO9001 certification, showcasing our commitment to quality.

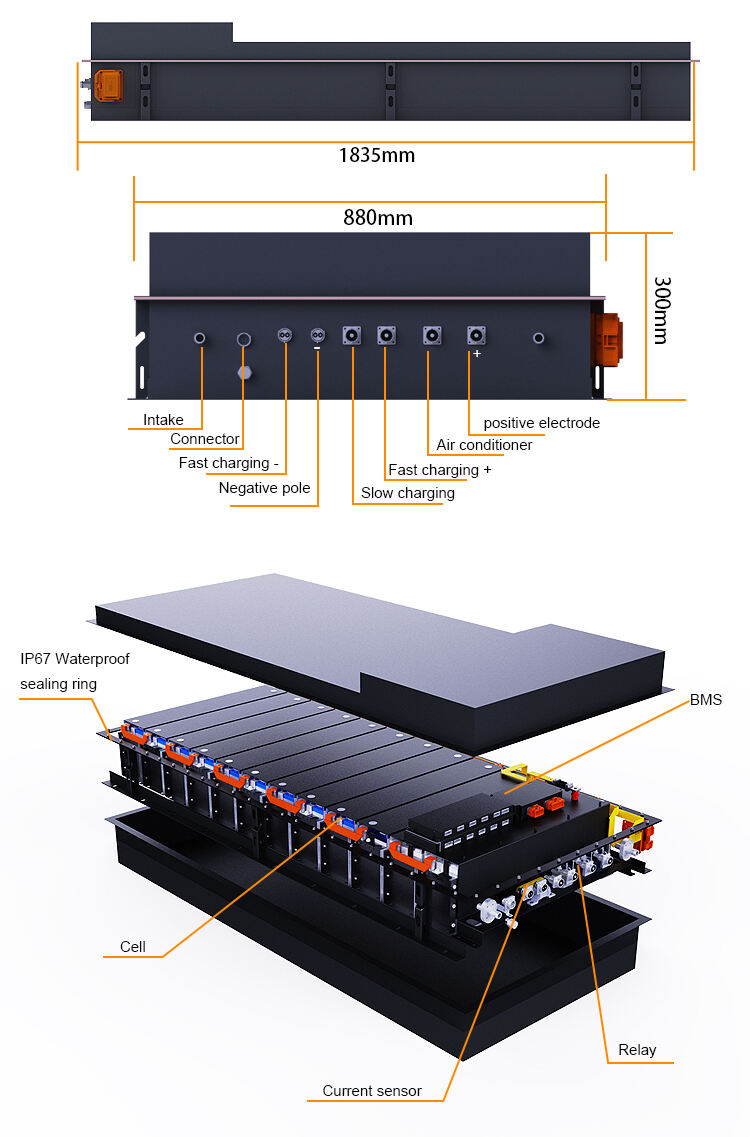

Details of 345v 210Ah lifepo4 battery pack
|
|||
No.
|
Items
|
Technical requirement
|
Note
|
1
|
Battery Type
|
Lifepo4
|
108S2P
|
2
|
Capacity(Ah)
|
210
|
@25℃
|
3
|
Volatge
|
345
|
|
4
|
Power(kWh)
|
72.45
|
|
5
|
Weight(kg)
|
603
|
|
6
|
Working Voltage range(DC V)
|
270-394.2
|
|
7
|
Continuous discharge current(A)
|
200
|
@EOL,@25℃
|
8
|
Peak discharge current(A)
|
600
|
For 30 seconds
|
9
|
Standard charge current(A)
|
100
|
|
10
|
Max charge current(A)
|
200
|
|
11
|
Dimension (L/W/H, mm)
|
1835*880*300mm
|
|
More options for battery packs
96V 144V 320V 400V battery packs (Get the catalog here)!!!
|
|||||
Models
|
CTS72200
|
CTS96300
|
CTS144200
|
CTS345210
|
CTS400100
|
Battery Type
|
Lifepo4
|
Lifepo4
|
NMC
|
Lifepo4
|
Lifepo4
|
Voltage
|
73.6V
|
102.4
|
144V
|
345.6V
|
400V
|
Capacity
|
200Ah
|
300Ah
|
200Ah
|
210Ah
|
100Ah
|
Energy(kWh)
|
14.7kWh
|
30.72KWh
|
28.8kWh
|
72.58kWh
|
40kWh
|
Working Voltage range
|
57.5~83.95V
|
80~116.8V
|
120~168V
|
270~394V
|
315~456V
|
Continuous discharge current
|
200A
|
300A
|
200A
|
210A
|
100A
|
Peak discharge current
|
500A
|
600A
|
500A
|
600A
|
300A
|
Max charge current
|
100A
|
150A
|
100A
|
210A
|
100A
|
Dimension(mm)
|
750*530*245
|
1200* 500* 380
|
1000*600*245
|
1800*880*300
|
1200*680*280
|
Weight
|
118kg
|
230kg
|
195kg
|
650kg
|
320kg
|
537.5V 614V 700V 800V battery packs
|
|||||
Models
|
CTS537150
|
CTS614100
|
CTS614206
|
CTS614412
|
CTS800150
|
Battery Type
|
Lifepo4
|
Lifepo4
|
Lifepo4
|
Lifepo4
|
Lifepo4
|
Voltage
|
537.6V
|
614.4V
|
614.4V
|
614.4V
|
800V
|
Capacity
|
150Ah
|
100Ah
|
206Ah
|
412Ah
|
150Ah
|
Energy(kWh)
|
80.64kWh
|
61.44kWh
|
126kWh
|
253kWh
|
120kWh
|
Working Voltage range
|
480~700.8V
|
480~700.8V
|
480~700.8V
|
480~700.8V
|
625~912V
|
Continuous discharge current
|
100A
|
100A
|
200A
|
400A
|
150A
|
Peak discharge current
|
300A
|
300A
|
600A
|
800A
|
250A
|
Max charge current
|
100A
|
100A
|
200A
|
400A
|
150A
|
Dimension
|
1780*720*345
|
1780*720*345
|
1060*630*245
*4pcs
|
1060*630*245
*8pcs
|
2300*850*400
|
Weight
|
520kg
|
520kg
|
950kg
|
1760kg
|
1000kg
|
Application field
Hunan CTS Technology Co.,ltd (CTS Battery) is a leading provider of customized EV battery solutions, for electric cars, buses, trucks, boats, and engineering vehicles etc...
Why Choose us
1. Complete supply chain, We partner with TOP EV battery manufacturers such as CATL, Gotion, and CALB to ensure the highest quality. 2. Our team of engineers has more than 15 years of experience working with lithium batteries. 3. 30+ engineer R&D team independently develops battery system. 4. Wide production range, we have excellent experience for many different industries. 5. 24/7/365 on-line service provide instant technical support. We are committed to designing better battery solutions and providing one-to-one service to each domestic and foreign customer. Lithium battery innovation brings more possibilities for the development of many projects and brings more convenience to everyone's life. Smart product development requires multiple systems integration and effective teamwork. We were born to meet this market demand, and we provide better solutions and better services to save the time and energy of your engineering team.
