Mobile charging station 65kwh 141kwh ev battery fast charging 161kwh rescue car energy storage charging system
CTS offers a mobile charging station and energy storage system. The system includes EV batteries with capacities ranging from 65kwh to 161kwh, capable of fast charging. These components are designed to provide reliable power for vehicles, ensuring efficient charging and energy storage. With advanced technology and strict quality control, they enhance the convenience and functionality of vehicle charging and energy management.
Description
Mobile charging station 65kwh 141kwh ev battery fast charging 161kwh rescue car energy storage charging system
CTS Mobile EV Charging Solutions
The mobile charging station system integrates lithium batteries and charging piles, which are used for emergency rescue of electric vehicles on the road. It is equipped with energy storage batteries with different battery capacities and outpowers, and supports various charging standards such as CCS1/CCS2 and GB/T.
PRODUCT DESCRIPTION
Advantages
- Most safe LFP technology more powerful
GRADE A++ LiFePO4 battery is an excellent option for energy storage battery due to its
high energy density, long cycle life, low self-discharge rate, high discharge rate, fast charging, and safety. It providesconvenient, efficient, and fast charging services for electric vehiclesf to allowing them to travel longer distances.
- Higher charging efficiency
Energy storage and mobile charging stations usually adopt fast charging technology, which
can charge electric vehicles in a short time, improving charging efficiency. It can be fully charged with 20KWH in 10 minutes.- Strong flexibility
Energy storage and mobile charging stations can move to the place where charging services are needed at any time and anywhere, providing more convenient charging services.
- Strong scalability
Energy storage and mobile charging stations can be expanded according to demand, moving charging stations to other locations to meet the charging needs of different regions.

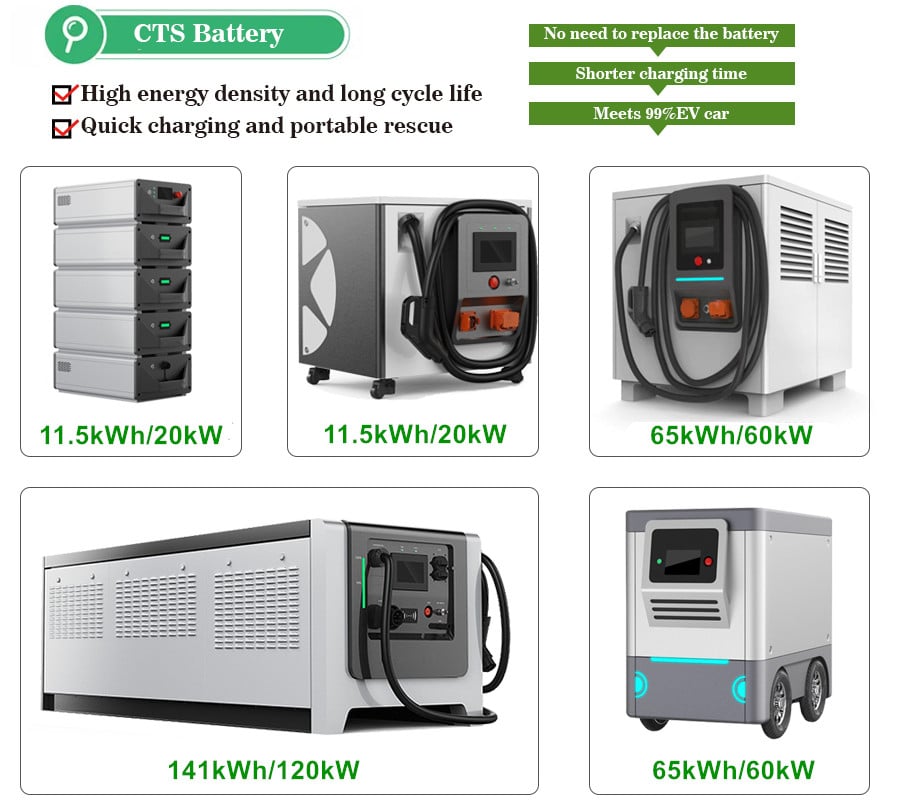

Basic Parameters of Mobile Rescue EV Charging Station
| MODEL | CTS-M1120 | CTS-M6560 | CTS-M6560 | CTS-M161120 |
| Energy | 11.5KWH | 65KWH | 65KWH | 161KWH |
| Output power | 20KW | 60KW | 60KW | 120KW |
| Output voltage | DC200V-750V | DC200V-750V | DC200V-750V | DC200V-750V |
| Output current | 0-50A | 0-150A | 0-150A | 0-250A |
| Dimensions (L x W x H) | 740*465*890mm | 1250*925*1050mm | 1480*900*1400mm | 2050*1230*1087mm |
| Weight | <160KG | <800KG | <1000KG | <1500KG |
| Charging gun cable | 5M | 5M | 5M | 7M |
| Display | 7 inches | |||
| Charging gun standard | CCS1/CCS2/CHAdeMO | |||
| Input Protocol | CCS1/CCS2 （7KW） | CCS（60KW）& 380VAC(20KW) | CCS（60KW）& 380VAC(20KW) | CCS & 380VAC |
| Reserved AC Output interface | 7kw | 20KW(customized function) | 20KW(customized function) | 20KW(customized function) |
| Safety standard | IEC62619, UN38.3, MSDS.CE | |||
What charging standards does it support？
FAQ
1、How much capacity of the mobile charging station ?
Re: 40kWh/65kWh/141kWh/161kWh
Re: 40kWh/65kWh/141kWh/161kWh
2、How many kWh can be charged to a vehicle in one hour?
Re: 60kwh
Re: 60kwh
3、How long does it take to fully charge the mobile charging station itself？
Re: 1-2 hours.
Re: 1-2 hours.
4、Is it a DC fast charging output?
Re: Yes,DC fast charging output.
Re: Yes,DC fast charging output.
5、ls it safe to use in high temperatures during summer?
Re: Yes, it is safe, as it has a wind/liquid cooling system.
Re: Yes, it is safe, as it has a wind/liquid cooling system.
6、Can the charging gun cable be extended?
Re: Yes,it can be extended.
Re: Yes,it can be extended.
7、ls the device operation complicated?
Re: No, it is not complicated, as there are instructions
Re: No, it is not complicated, as there are instructions
8、What charging standards does it support？

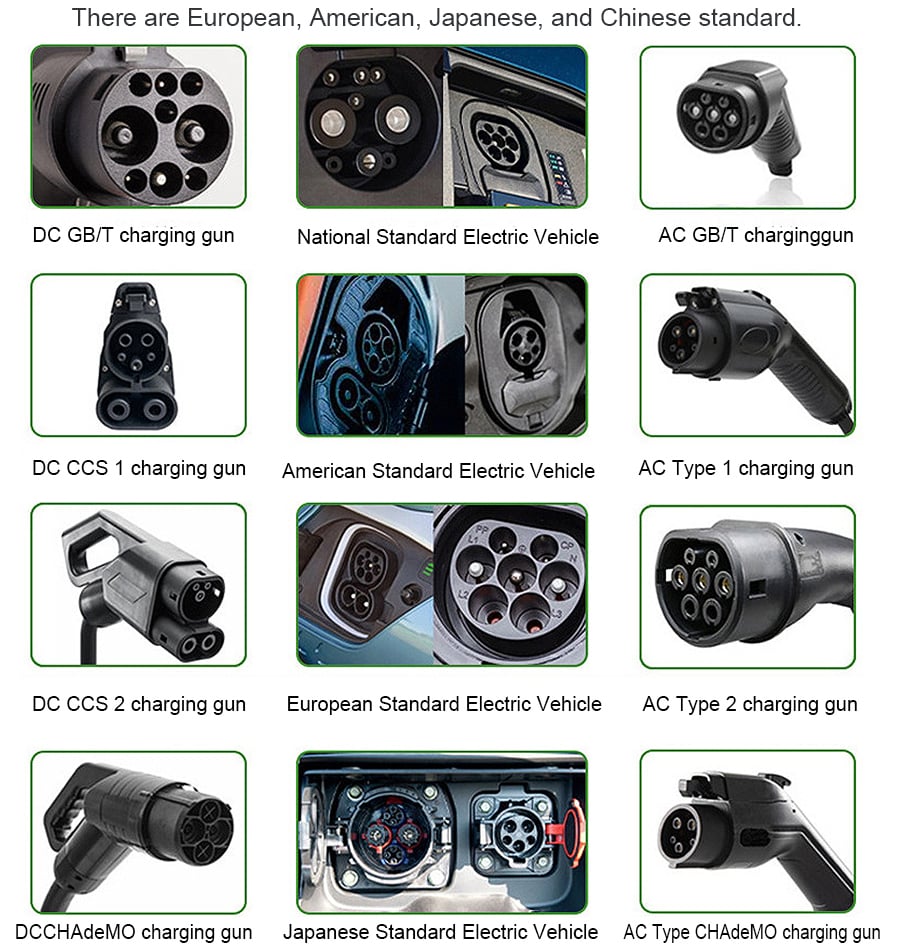

Re:CCS1/CCS2/DCCHAdeMO / GB/T
Re:CCS1/CCS2/DCCHAdeMO / GB/T
9、Can it be used for home/enterprise energy storage?
Re: Yes,it can
Re: Yes,it can
